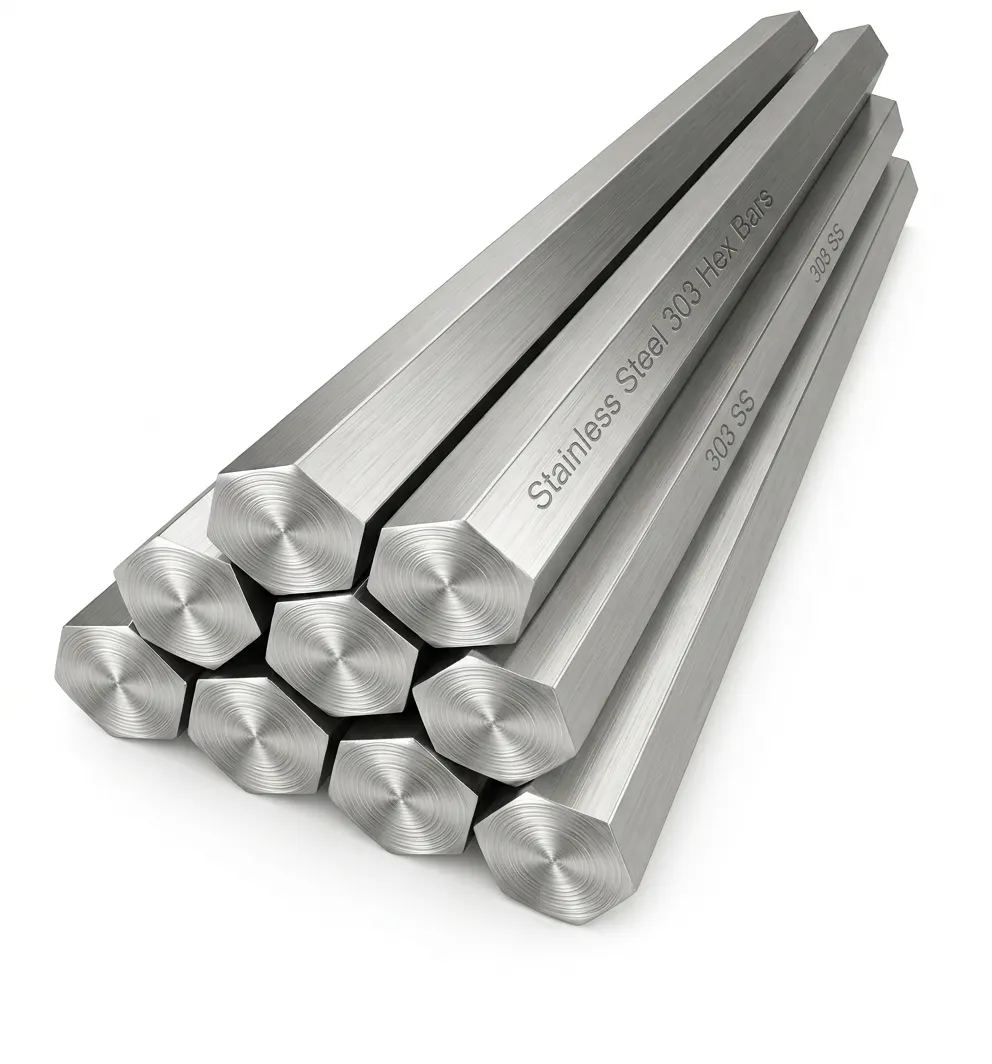

The Steel House India is one of the premier manufacturers, stockists, and structural suppliers of high-precision ASTM A276 AISI Stainless Steel 303 Hex Bars in India. Sourced from premium VOD/AOD refined billets, our warehouse maintains an extensive, readily available inventory of hexagonal profiles calibrated for modern high-speed automated CNC milling and Swiss screw machining operations. We cater directly to procurement managers across the domestic market and global industrial hubs, offering reliable supply lines for across-flats (A/F) dimensional specifications spanning a highly specialized range from micro-precision 2mm rods up to heavy-forged 500mm industrial profiles.
To provide immediate commercial clarity and transparency for your budgeting workflows, our certified inventory of Steel House India-branded SS 303 hex rods is available starting from an industry-competitive base wholesale rate of ₹180/Kg. Because industrial procurement demands exact physical variables, our automated warehouse lines ensure that materials are continuously maintained in stable, climate-controlled environments. This preserves the bright, cold-drawn finish of the steel, guaranteeing that every delivery arrives structurally sound, fully traceable, and completely free from superficial surface defects.
Optimizing Automated CNC Turning: The Metallurgy of Free-Machining SS 303
Grade 303 (designated internationally as UNS S30300 and Werkstoff Number 1.4305) represents an austenitic stainless steel explicitly modified to provide peerless free-cutting performance during prolonged machining runs. The defining feature of this grade is the deliberate, tightly controlled addition of sulfur at a strict minimum threshold of 0.15%. This elemental adjustment alters the microstructural behavior of the steel at the cutting tool interface, turning an otherwise difficult-to-machine austenitic alloy into the absolute industry benchmark for mass-production turning operations.
➤ Manganese Sulfide (MnS) Inclusions as Internal Chip-Breakers:
The chemical addition of sulfur interacts directly with the manganese content in the heat to form uniform manganese sulfide (MnS) inclusions spread throughout the metal matrix. During high-speed spindle operations, these microscopic inclusions act as internal stress-raisers that cause the continuous chip stream to fracture instantly into brittle, easily cleared segments, eliminating long, dangerous metal nesting around the lathe spindle.
➤ Decisive Reductions in Friction and Tool-Die Preservation:
The MnS inclusions function as a continuous, solid chemical lubricant at the immediate friction point between the workpiece and the carbide insert. This localized lubrication drastically lowers heat generation at high RPMs, directly preventing thermal deformation of the material while extending tool-die operational lifespan by minimizing edge wear and material galling.
➤ Direct Elimination of Costly Secondary Milling Operations:
By sourcing a precision cold-drawn hexagonal profile that fits straight into automatic 3-jaw chucks or hex collets, engineering workshops completely bypass the secondary manufacturing stage of face-milling flats on a standard round bar. This optimization drastically slashes cycle times for production runs of hexagonal components such as high-torque nuts, specialized bolts, and fluid power valves.
Critical Engineering Alert: Weldability Restrictions of Grade 303 Hexagonal Rods
Despite incorrect online listings, Stainless Steel 303 is fundamentally non-weldable and must never be specified for structural fabrication. The sulfur (0.15% min) that enables its free-machinability acts as a severe contaminant under weld heat, segregating to grain boundaries to form low-melting-point iron sulfide (FeS) eutectic compounds. These compounds remain liquid as the weld pool cools, causing catastrophic hot cracking (solidification cracking)across the fusion zone under thermal contraction stresses, while driving outgassing that leaves behind weak, porous joints. For structural code welding or marine-grade corrosion resistance, route your requirements to our certified stock lines as a reliable [SS 304 Hex Bar Supplier in India] to guarantee field safety.
Why Source SS 303 Hex Bars From The Steel House India?
Procuring heavy industrial alloys demands a manufacturer capable of backing structural material claims with verifiable processing infrastructure, reliable quality compliance, and reliable logistical handling standards. The Steel House India transitions standard corporate promises into transparent, quantifiable engineering processes designed to mitigate supply-chain risks for your machine shop or manufacturing facility.
Industrial Warehousing, Secure Packaging & Reliable Dispatch Standards
Operating from our centralized, primary warehousing infrastructure located exclusively in Mumbai, Maharashtra, The Steel House India leverages over 30+ years of industrial supply experience to guarantee flawless material distribution. Because cold-drawn hexagonal bars feature sharp 60-degree edges required for exact wrench clearances, they are highly vulnerable to surface dings and transit scratches during freight forwarding. Our dedicated Mumbai logistics desk secures immediate, high-priority freight routes to ensure rapid transit times across major domestic engineering zones and streamlined international shipping through proximate deepwater ports.
➤ Edge-Protection Bundling:
Hexagonal profiles are nested tightly together face-to-face to eliminate internal friction and movement during transit.
➤ Heavy-Duty Protective Wrapping:
Bundles are wrapped in durable, moisture-resistant HDPE plastic wrapping to guard against ambient humidity, rainfall, or sea-air corrosion during freight forwarding.
➤ Traceability Compliance:
Every shipment is systematically tagged with corresponding heat numbers and dispatched alongside fully detailed EN 10204 3.1 Mill Test Certificates (MTC), providing your quality compliance team with verifiable proof of chemical composition and mechanical properties.
ASTM A276 / AISI 303 Hexagonal Bar Material Properties & Standards
The data grids below outline the strict chemical, mechanical, and international dimensional metrics adhered to by The Steel House India. These standardized benchmarks ensure that our physical warehouse stock matches the exact performance parameters required by international design engineers.
1. Technical Specifications and Standard Compliance
| Feature Parameter | Industrial Specification Standards |
|---|---|
| Standard Specifications | ASTM A276, ASTM A479, ASME SA276, ASME SA479 |
| Delivery Standards | EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
| Across-Flats (A/F) Range | 2 mm to 500 mm (Standard Metric & Imperial) |
| Dimensional Tolerances | h8, h9, h10, h11 (Conforming to DIN 671) |
| Available Finishes | Cold Drawn, Bright Polished, Centerless Ground |
2. International Equivalent Grade Cross-Reference Matrix
| American Standard | UNS Designation | EuroNorm (EN/DIN) | Japanese Standard |
|---|---|---|---|
| AISI 303 | UNS S30300 | W.Nr. 1.4305 | SUS 303 |
3. Chemical Composition Threshold Limits (ASTM A276)
| Element Name | Value (%) | Element Name | Value (%) | Element Name | Value (%) |
|---|---|---|---|---|---|
| Carbon (C) | 0.15 max | Chromium (Cr) | 17.0 - 19.0 | Phosphorus (P) | 0.20 max |
| Manganese (Mn) | 2.00 max | Nickel (Ni) | 8.00 - 10.00 | Sulfur (S)* | 0.15 min |
| Silicon (Si) | 1.00 max | Iron (Fe) | Balance |
4. Mechanical Strength & Physical Property Metrics
| Mechanical Property Profile | Minimum Certified Threshold Values |
|---|---|
| Ultimate Tensile Strength | 85,000 psi (approx. 586 MPa) |
| Yield Strength (0.2% Offset) | 45,000 psi (approx. 310 MPa) |
| Elongation Percentage | 50% Minimum (in 50 mm span) |
| Brinell Hardness (HB) | 262 Max Hardness Value |
Theoretical Weight Chart & Across-Flats (A/F) Dimensional Sizing
Calculating shipping weights, bulk volume displacement, and handling constraints is critical for freight planning and logistical management. To determine the precise theoretical mass of a true stainless steel hexagonal profile per linear meter, engineers utilize the following geometric constant formula: Across Flats (mm) × Across Flats (mm) × 0.0068 = Weight in Kilograms per Meter (Kg/m).
Sizing and Theoretical Weight Reference Grid
| A/F Size (mm) | Weight (Kg/m) | A/F Size (mm) | Weight (Kg/m) |
|---|---|---|---|
| 6 mm | 0.24 Kg | 22 mm | 3.29 Kg |
| 8 mm | 0.43 Kg | 24 mm | 3.91 Kg |
| 10 mm | 0.68 Kg | 27 mm | 4.95 Kg |
| 12 mm | 0.98 Kg | 30 mm | 6.12 Kg |
| 14 mm | 1.33 Kg | 32 mm | 6.96 Kg |
| 17 mm | 1.96 Kg | 36 mm | 8.81 Kg |
| 19 mm | 2.45 Kg | 41 mm | 11.43 Kg |
Strategic Industrial Applications of Austenitic SS 303 Hexagonal Bars
➤ Micro-Scale Component Production (2mm to 12mm Range):
These highly precise, narrow dimensions are continuously channeled into automated miniature lathe benches for the mass fabrication of electrical switchgear pins, specialized electronic connector terminals, coaxial housing parts, and intricate instrumentation screws where exact dimensional stability is mandatory.
➤Standard Industrial Fitting Sizing (14mm to 75mm Range):
This represents the core high-volume tier for automated CNC workshops. This sizing is utilized heavily to manufacture high-pressure hydraulic hose adapters, fluid power coupling sleeves, pneumatic manifold ends, precision valve spindles, and heavy-duty nuts or bolts where the native 6-sided geometry provides an instant, durable wrenching surface.
➤ Heavy Machinery Engineering Equipment (80mm to 500mm Range):
Our largest forged and centerless ground hexagonal blocks are specified by heavy industrial machinery builders for high-torque drive adapters, specialized industrial gear shafts, heavy machinery keys, lock blocks, and rugged mining transport couplings subjected to continuous torsional strain.
Frequently Asked Questions (FAQ)
Do your SS 303 hex bars come with fully traceable chemical documentation?
Yes, every single delivery of SS 303 hexagonal rods dispatched from our warehouse facility is accompanied by complete EN 10204 3.1 Mill Test Certificates. This paperwork provides absolute trace-history transparency back to the original furnace heat number, specifying exact chemical analysis breakdowns, raw mechanical elongation thresholds, and non-destructive testing outcomes.
Is the advertised starting rate of ₹180/Kg fixed for all sizes across your inventory?
No, the ₹180/Kg figure serves as our baseline wholesale price point for standard volume orders of high-demand industrial sizes. Real-time commercial quotes adjust dynamically based on the complexity of drawing micro-sizes (like 2mm wire forms), custom cut-to-length requirements, specific surface polishing treatments, and the total raw tonnage requested in the RFQ.
Material Integrity & Editorial Review
This technical documentation has been compiled and validated by the editorial desk at The
Steel House India. Leveraging over three decades (30+ years) of metallurgical distribution
experience, structural manufacturing insights, and cross-border procurement history in the
Indian steel market, we ensure that every commercial data point aligns with active
international manufacturing standards (ASTM, ASME, DIN, and ISO).
Our long-standing relationships with premier domestic and global mills guarantee that the
chemical parameters, structural tolerances, and commercial pricing models presented on this
page represent authentic, field-tested reality for precision engineering workshops.
Do you provide material test certificates (MTC)?
Yes, all stainless steel hex bars are supplied with EN 10204 3.1 certification along with PMI and batch traceability reports where required.
Can stainless steel hex bars be supplied in custom lengths?
Yes, Steel House India provides cut-to-length services based on production requirements, typically supporting custom industrial machining and fabrication needs.
Which industries commonly use stainless steel hex bars?
They are widely used in automotive manufacturing, oil & gas, chemical processing, marine engineering, pharmaceutical equipment, and general industrial fabrication.
